MAXXtip®

Aperçu

  • Overview

    Process-reliable direct fastening into:
    - ultra-high strength steels
    - cast iron

    Completely insensitive to hydrogen embrittlement - even with galvanic coatings
    Removable joint


CAD & More sur ejot.com

Votre enregistrement sur notre site vous donnera accès aux nombreux services que nous mettons à votre disposition : données CAO, informations produits, PDF des dessins techniques de nos produits DELTA PT®, SHEETtracs® et ALtracs® Plus. En outre, CAD & more vous offre la possibilité de créer une simulation numérique d'un assemblage ou de vérifier leur faisabilité avec les "APPLICATION CHECKs".


CAD & more

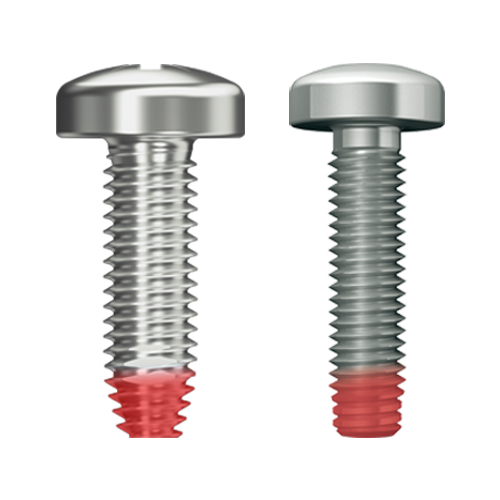

Thread forming solution for (ultra) high strength materials

EJOT MAXXtip® combines a carbo-austempered shank with an ultra hard screw tip. This unique combination allows completely new options for direct fastening into (ultra) high strength materials.

Due to the carbo-austempered microstructure (strength similar to 10.9) in the load-bearing area MAXXtip® screws are insensitive to hydrogen embrittlement. Therefore, galvanic surfaces can be applied without tempering leading to a thread flank hardness of at least 750 HV* in the forming area.

*In case of Zn flake surfaces, baking leads to a reduced thread flank hardness in the forming area of at least 600 HV.

Main application fields of EJOT MAXXtip®

(ultra) high strength steel sheets (at least UTS of 1200 MPa) using the thread types
- SHEETtracs® up to 2 mm
- Spiralform® analogous to DIN 7500
cast iron (GJS und GJL) using the Spiralform® thread type
